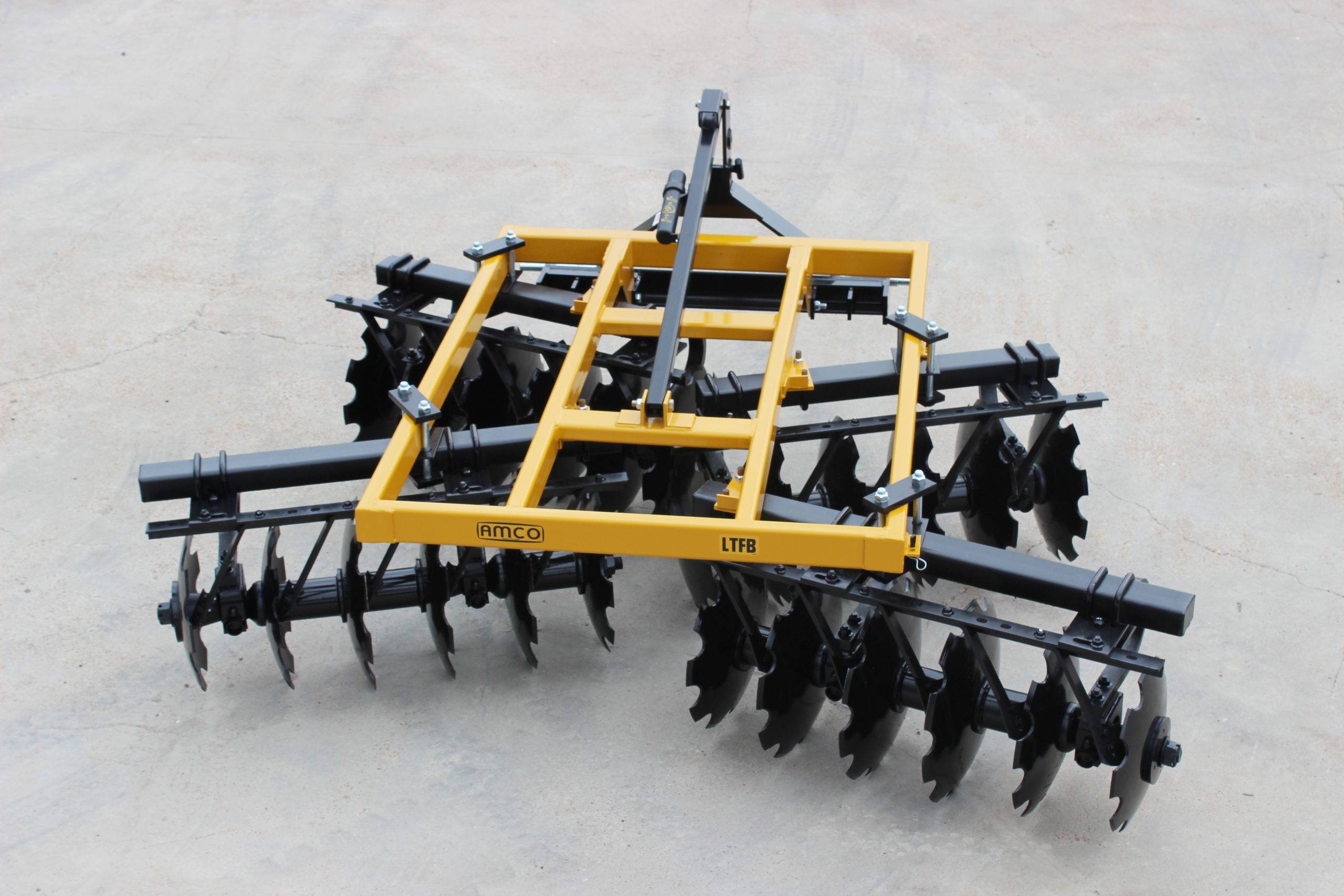

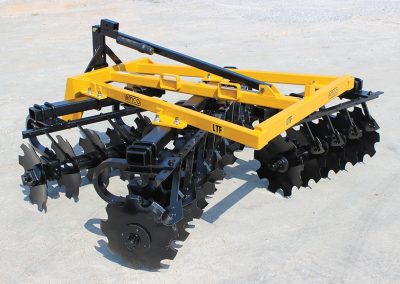

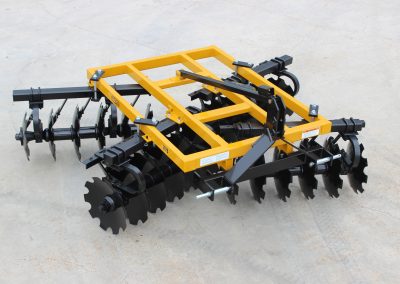

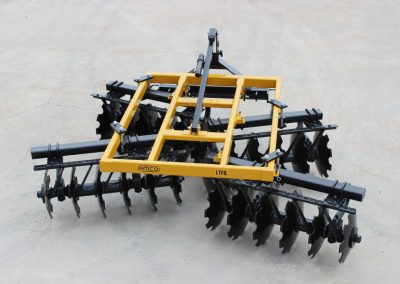

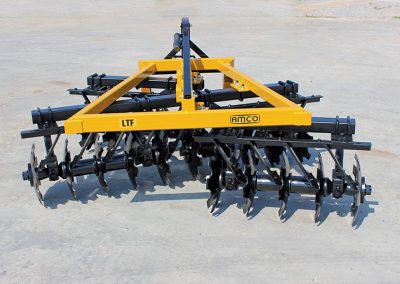

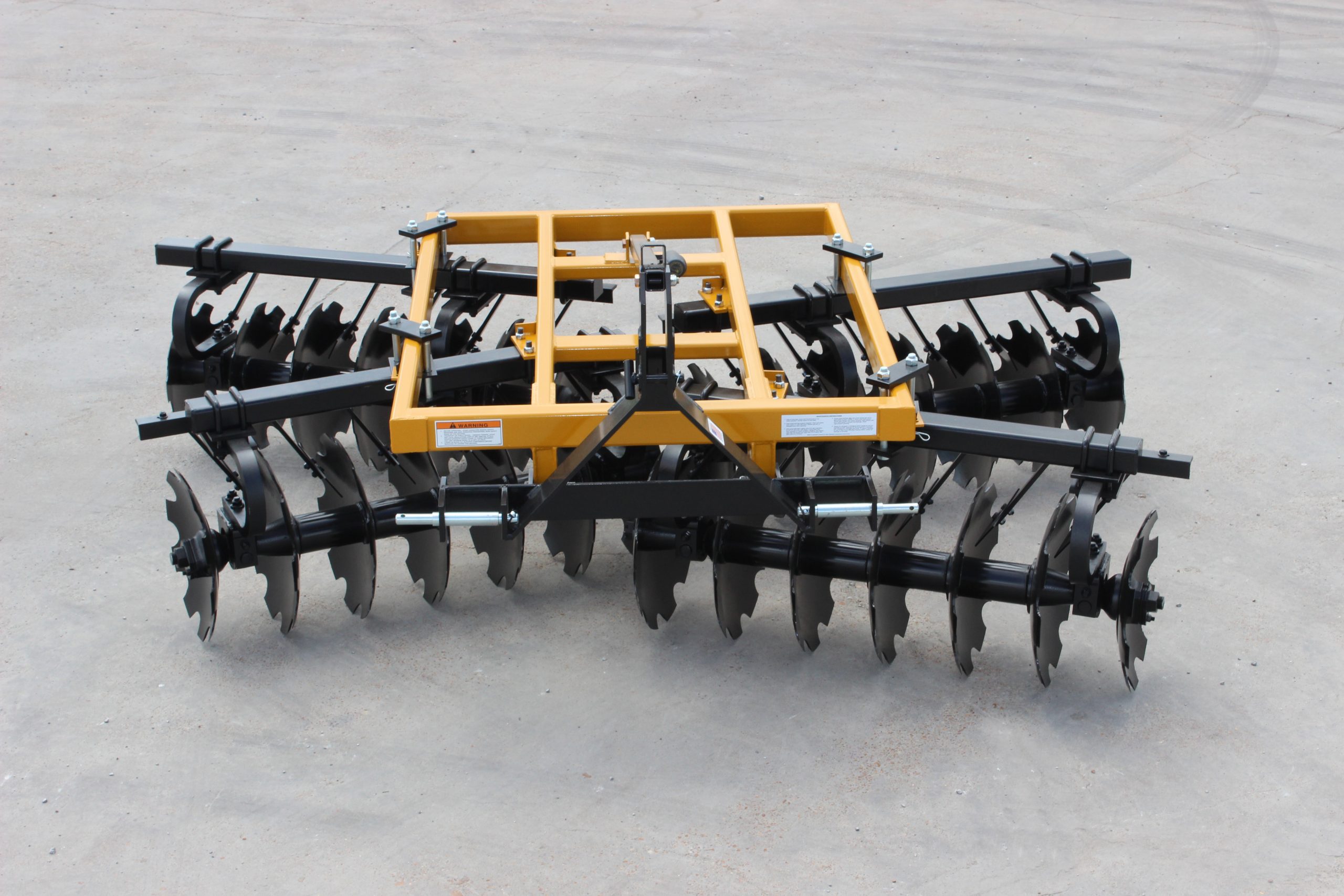

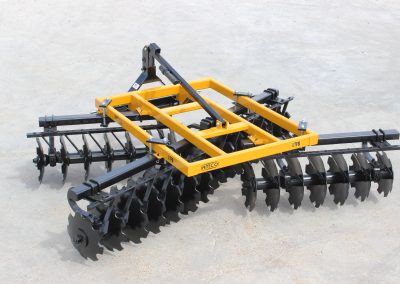

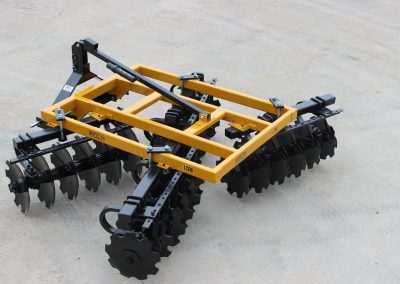

LTF Lift Double Offset Harrows

Built AMCO tough, the rugged, hard-working LTF Lift Offset Harrows make tillage and seedbed preparation go smoothly. It is perfect for building and maintaining food plots, logging roads, gardens, turn rows, and firebreaks. AMCO’s LTF series is available in seven sizes, so you are guaranteed to find the perfect fit for your operation.

Double Offset: LTF, LTFP

LTF features include:

  • Disc gangs feature maintenance-free bearings with three-year warranty; bearings eliminate possibility of contamination and need for re-lubrication

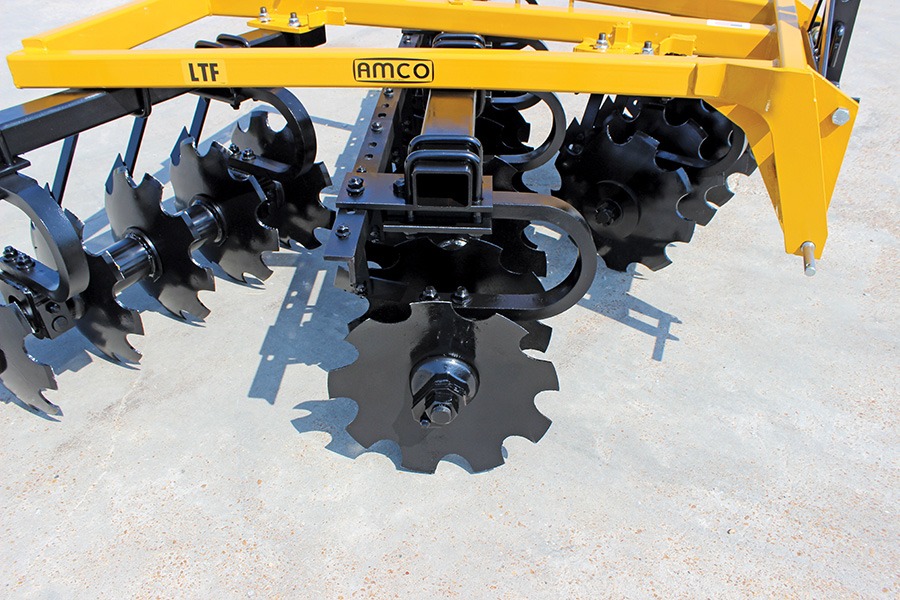

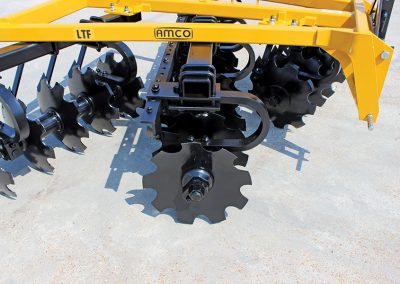

  • Shock Absorber Bearing Risers absorb shock when disc blades encounter obstacles, flexing to lift blades that have met an obstruction while keeping the other gangs in contact with the soil
  • 18″ x ¼” cutout blades on small-frame harrows and 22″ x ¼” cutout blades on large-frame harrows
  • Drilled and threaded bumper washers for easy installation of optional feathering blades
  • Small-frame models fit category I and II hitches. Large-frame models and the Pine Plantation model fit category II or III quick hitches
  • Gang angles adjust from 14° to 18° to adapt to any soil conditions
  • 1½” square, high-carbon, cold-rolled steel axles

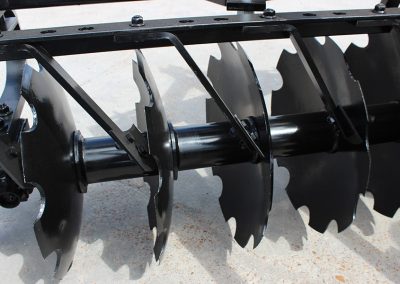

  • Standard heavy-duty scrapers with replaceable high-carbon blades free blades of soil buildup
  • Optional feathering blades catch soil thrown by blades on the front gang before it falls in adjacent rows, resulting in a smooth finish and allowing faster operation
  • A rugged, tubular, welded, steel-reinforced frame with a durable, powder-coated finish

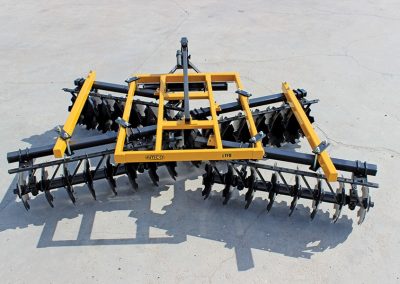

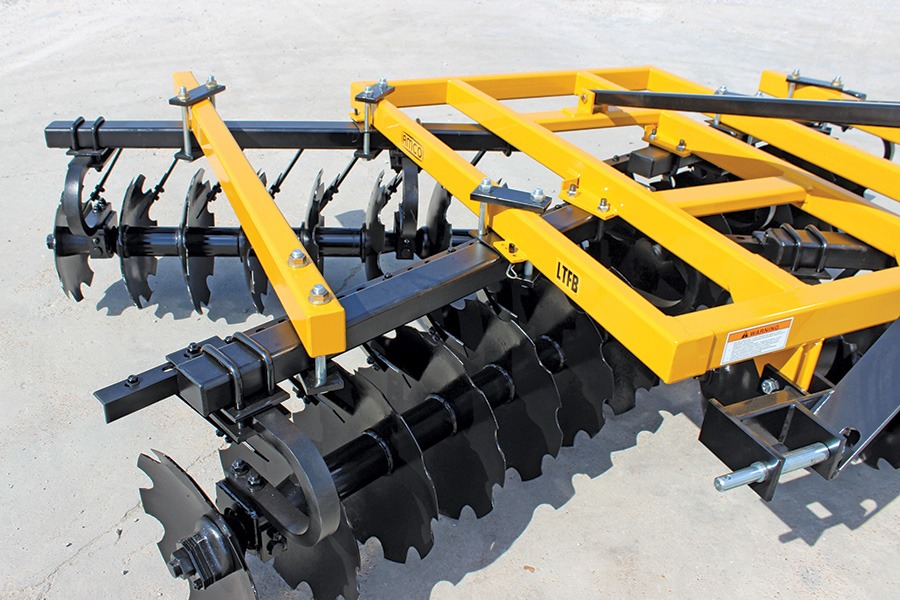

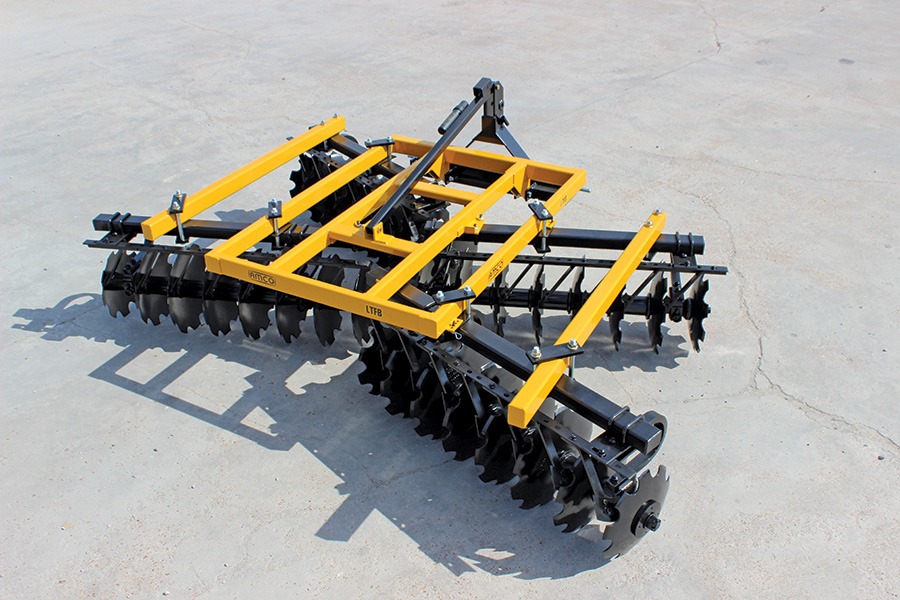

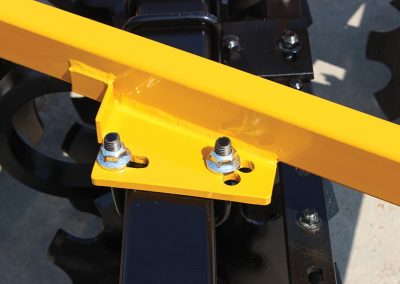

  • Two auxiliary bars provide additional support for the gang frames

Small Frame

Model Cutting Width No. of Disc Blades Approx. Engine HP Required* Approx. Weight lbs**
LTF100-1618 6′ 16 32-47 1,600
LTF100-2018 7’3″ 20 41-52 1,750

Large Frame

Model Cutting Width No. of Disc Blades Approx. Engine HP Required* Approx. Weight lbs**
LTF100B-2022 7’3″ 20 60 2,450
LTF100B-2422 8’7″ 24 80 2,700
LTF100B-2822 10’2″ 28 100 2,900
LTF100B-3222 12′ 32 110 3,131

Pine Plantation

Model Cutting Width No. of Disc Blades Approx. Engine HP Required* Approx. Weight lbs**
LTFP100B-2022 7’3″ 20 60 2,600

*Four-wheel drive recommended.
**To calculate weight per blade on each unit, divide the approximate weight by the number of blades.

Specifications for all models subject to change without notice.
